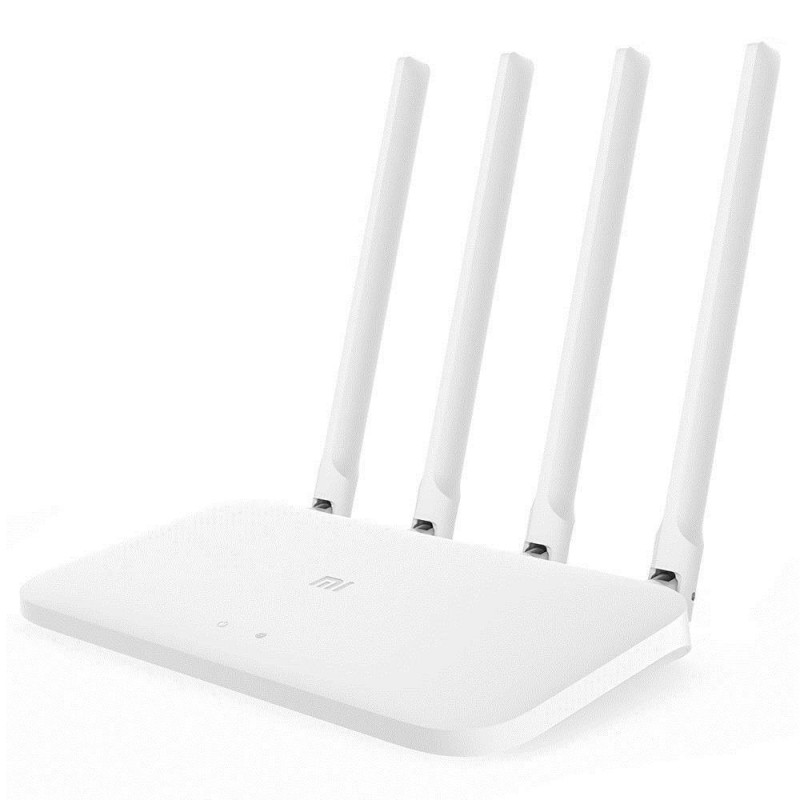

Xiaomi Mi WiFi Router 4A weiss

Produkt ID: 94026
Produktvariante: Xiaomi Mi WiFi Router 4A
Farbe: weiss
Teilenummer: 2447434


Parametre:

Procesor: MT7620A

ROM: 128MB SLC Nand Flash

RAM: 128MB DDR2 - 2,4GHz WiFi 2X2, 802.11n, rýchlosť až 300 Mb/s
5GHz WiFi 2X2, 802.11ac, rýchlosť aá 867 Mb/s

Štyri antény s veľkým ziskom, na 2,4GHz max. 5dBi, na 5GHz max. 6dBi<

Porty:USB 1x USB 2.0 (max 5V/1A)

1x WAN 10/100 Mb/s (Auto MDI/MDIX)

2x LAN 10/100 Mb/s (Auto MDI/MDIX)

Vysielacie parametre:

2.4GHz a 5GHz dual-band súbežne
Nepodporuje technológiu beamforming
Frekvencia 2.4GHz kanály: 1 ,2,3,4,5,6,7,8,9,10,11,12,13
Frekvencia 5GHz kanály: 149,153,157,161,165
5GHz DFS kanály: 36,40,44,48,52,56 ,60,64
Modulácia 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps),
CCK (5.5 / 11Mbps)
11a / g: OFDM: BPSK (6 / 9Mbps),
QPSK (12 / 18Mbps), 16QAM (24 / 36Mbps),
64QAM (48 / 54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM.
Rate Set: MCS0 ~ MCS
11ac: MIMO-OFDM: BPSK,
QPSK, 16QAM, 64QAM, 256QAM.
Rate Set: MCS0 ~ MCS9 (podporuje dva súbežné streamy)
Citlivosť príjmu 11Mbps: ?-90dBm, ?-90dBm, ? ?-72dBm,
HT20 MCS7: ?-69dBm,
HT40 MCS7: ?-66dBm,
VHT20 MCS8: ?-65dBm,
VHT40 MCS9: ?-60dBm,
VHT80 MCS9 ?-58 dBm
----------------------------------------------- -------------------------------------------------- -------------------------------------

Špecification
Hardware
Brand Xiaomi
CPU MT7628DA
ROOM 16MB NorFlash
RAM 64MB DDR2
2.4G WiFi 2X2 (Support IEEE 802.11n, 300Mbps max)
Antenna 4 PCS
Heat dissipation
Material SECTION
Color White
Size 195 * 107 * 25.3mm
Weight 241g
Interfaces
Lan port 2 (10/100 Auto MDI / MDIX)
WAN port 1 (10/100 Auto MDI / MDIX)
LED indikátory 3 (Red/Blue/Yellow)
Button 1 x Reset tlačidlo
DC vstup 1
Wireless
WiFi band 2.4GHz
>Wireless channels 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
Modulation mode
11b:DSSS:DBPSK(1Mbps),DQPSK (2Mbps),
CCK(5.5/11Mbps)
11g:OFDM:BPSK(6/9Mbps),
QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48 /54Mbps)
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

Receiving sensitivity 11Mbps:?-90dBm,54 Mbps:?-72dBm,
HT20 MCS7:?-69dBm,
HT40 MCS7:?-66dBm
Softvér
Operating systém MiWiFi ROM (Based on OpenWRT)
Language Tento originálny systém tohto produktu je s Čínskym a ľuďom zmenšuje language prostredníctvom oficiálneho APP.<
Wireless security WPA-PSK/WPA2-PSK encryption, Wireless access control (black and white list), SSID hiding, Intelligent anti rub network, wireless intrusion detection, password brute force crack detection, management background access control, access to SSID
Management application Support Web, Android, iOS
Protocol štandardy IEEE 802.11b/g/n, IEEE 802.3/3u
Approval štandardy GB9254-2008 YD/T993-1998 GB4943.1-20 environment Operačná teplota: 0-40°C
Working humidity: 10%-90%RH
Storage temperature: -40-70°C
Storage humidity: 5%-90%RH
Power: 5W
Package Contents
1 x Xiaomi WiFi Router 4C, 1 x Charger (5V/1A), 1 x User Manual
